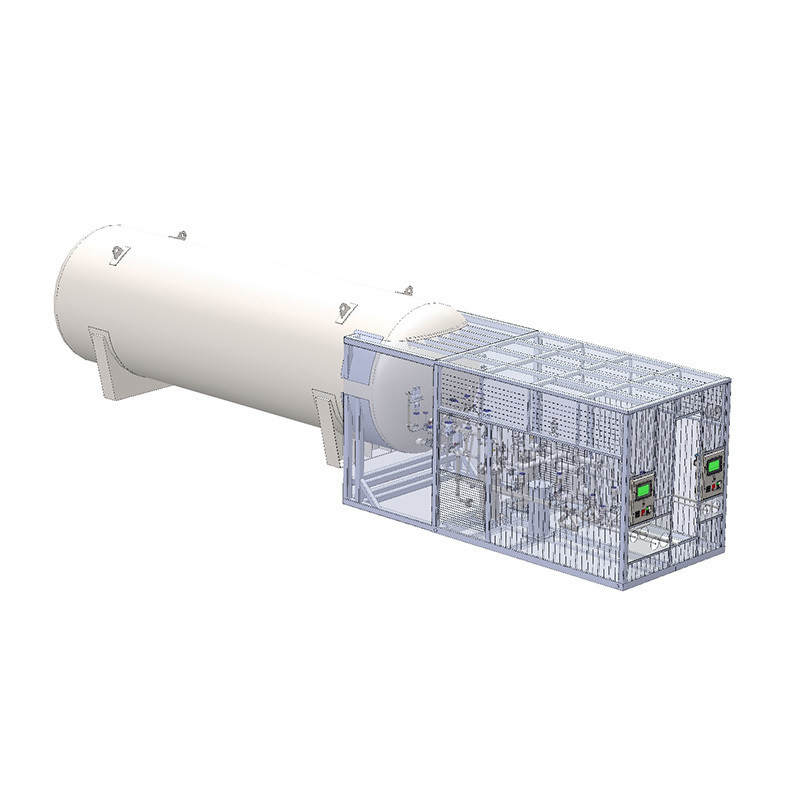

Single tank marine bunkering skid

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Produkt-Beschreibung

The maximum volume is 40m³/h. It is mainly used in the on-water LNG bunkering station with the PLC control cabinet, the power cabinet and the LNG bunkering control cabinet, the functions of bunkering, unloading and storage can be realized.

Product features
Specifications
Ask now

Product features

Modular design, compact structure, small footprint, easy installation and use.

Single tank marine bunkering skid

● Approved by CCS.
● Process system and electrical system are arranged in partitions for easy maintenance.
● Fully enclosed design, using forced ventilation, reducing the dangerous area, high safety.

● Can be adapted to tank types with diameters of Φ3500～Φ4700mm, with strong versatility.
● Can be customized according to user needs.

Specifications

Model	HPQF series	Designed temperature	-196～55℃
Dimension(L×W×H)	6000×2550×3000(mm)(Exclusive of tank)	Total power	≤50kW
Weight	5500 kg	Power	AC380V, AC220V, DC24V
Bunkering capacity	≤40m³/h	Noise	≤55dB
Medium	LNG/LN2	Trouble free working time	≥5000h
Design pressure	1.6MPa	Measurement error	≤1.0%
Working pressure	≤1.2MPa	Ventilation capacity	30 times/H
*Note: It needs to be equipped with a suitable fan to meet the ventilation capacity.

Application

This product is suitable for small and medium-sized barge type LNG bunkering stations or LNG bunkering vessels with small installation space.
