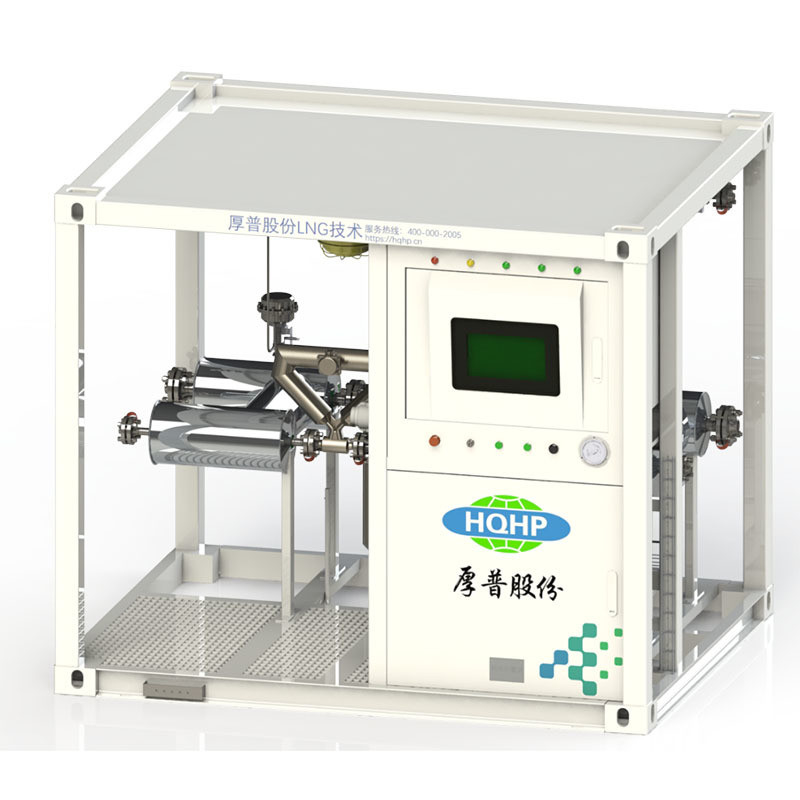

Liquid natural gas Marine Metering Skid

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Produkt-Beschreibung

When working, the liquid inlet end of the equipment is connected to the LNG filling skid, and the liquid outlet end is connected to the filling vessel. At the same time, according to customer needs, it is possible to choose to measure the return gas of the ship to enhance the fairness of trade.

Product features
Specifications
Ask now

Product features

Highly integrated and integrated design, easy to operate.

Marine Metering Skid

● Using a high-precision mass flow meter, the measurement accuracy is high.
● Both gas and liquid phases can be measured, and the trade measurement results are more accurate.

● The electronic control system is designed with intrinsic safety and explosion-proof, which is safe and reliable.
● Adopt high-brightness backlight LCD digital liquid crystal display, which can display the quality (volume) amount and unit price in the filling machine.
● It has the functions of pre-cooling intelligent judgment and breaking protection.

● Provide non-quantitative filling and preset quantitative filling.
● Data protection, extended data display and repeated display when power is off.
● Perfect data storage, management and query functions.

Specifications

Product number	H PQM series	Electric system	DC24V
Product Size	2500×2000×2100(mm)	Trouble free working time	≥5000h
product weight	2500kg	Liquid flow meter	CMF300 DN80/AMF300 DN80
Applicable media	LNG/liquid nitrogen	Gas flow meter	CMF200 DN50/AMF200 DN50
Design pressure	1.6MPa	System measurement accuracy	±1%
Work pressure	1.2MPa	Unit of measurement	Kg
Set tempreture	-196～55 ℃	Minimum division value of reading	0.01kg
Measurement accuracy	±0.1%	Single measurement range	0～9999.99kg
Flow rate	7m/s	Cumulative measurement range	99999999.99kg

Application

LNG filling station is mostly used in shore-based filling system.
If this type of equipment is required for the LNG filling station on the water, the products certified by the classification society can be customized.

mission

Efficient use of energy to improve the human environment
