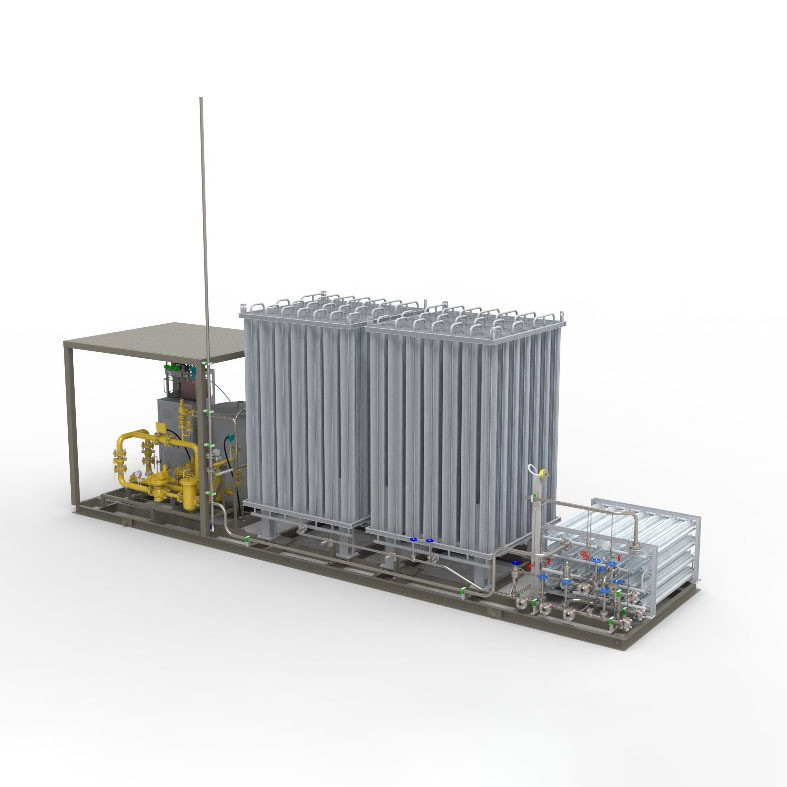

Unmanned LNG Regasification Skid

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Produkt-Beschreibung

The products are mainly composed of unloading pressurized gasifier, main air temperature gasifier, electric heating water bath heater, low temperature valve, pressure sensor, temperature sensor, gas probe, pressure regulating valve, filter, turbine flow meter, emergency stop button, low temperature / normal temperature pipeline and other systems.

Product features
Specifications
Ask now

Product features

Comprehensive security protection design, meet GB/CE standards.

Unattended LNG gasification skid

● Perfect quality management system, reliable product quality, long service life.
● Unattended integrated control system with SMS reminder function
● Optional Integrated Video Surveillance System (CCTV).
● Standard 20 to 45 feet shape structure, overall transportation.

● On-site installation is fast and fast and can be relocated at any time.
● With LNG unloading supercharge, gasification, pressure regulation, metering and other functions.
● Configure special instrument panel installation pressure, liquid level, temperature and other instruments.
● Standardized assembly line production mode, the annual output > 300 sets.

Specifications

Design temperature	-196~50°C	Ambient temperature	-30~50°C
Design pressure	1.6 MPa	Device form factor	6000~12000mm
Outlet pressure	0.05~0.4	Equipment weight	2000~5000kg
Recommended amount of gasification	500/600/700/800/1000/1500Nm³/h
Odorizing device	The volume of the odorization tank is 30L, and the single pump is 20mg/min
Metering devices	Turbine flowmeter accuracy 1.5 class
Control system	PLC+ remote monitoring

Application Scenarios

This product is used in unattended LNG gasification station, gasification capacity 500~1500Nm³/h.

mission

Efficient use of energy to improve the human environment
