Safe high quality Hydrogen Dispenser Breakaway Coupling

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Produktbezeichnung:

Wasserstoff-Auslösekopplung

Qualität:

Hoch

Lagerbestand:

- Ja, das ist es.

Farbe:

gery

Sicher.:

- Ja, das ist es.

Zuverlässig:

- Ja, das ist es.

Produkt-Beschreibung

Among which the mass flowmeter for hydrogen is the core part for gas dispenser of compressed hydrogen and the type selection of flowmeter can directly influence the performance for gas dispenser of compressed hydrogen.

Product features
Specifications
Ask now

Product features

The hydrogen refueling breakaway coupling can seal quickly, which is safe and reliable.

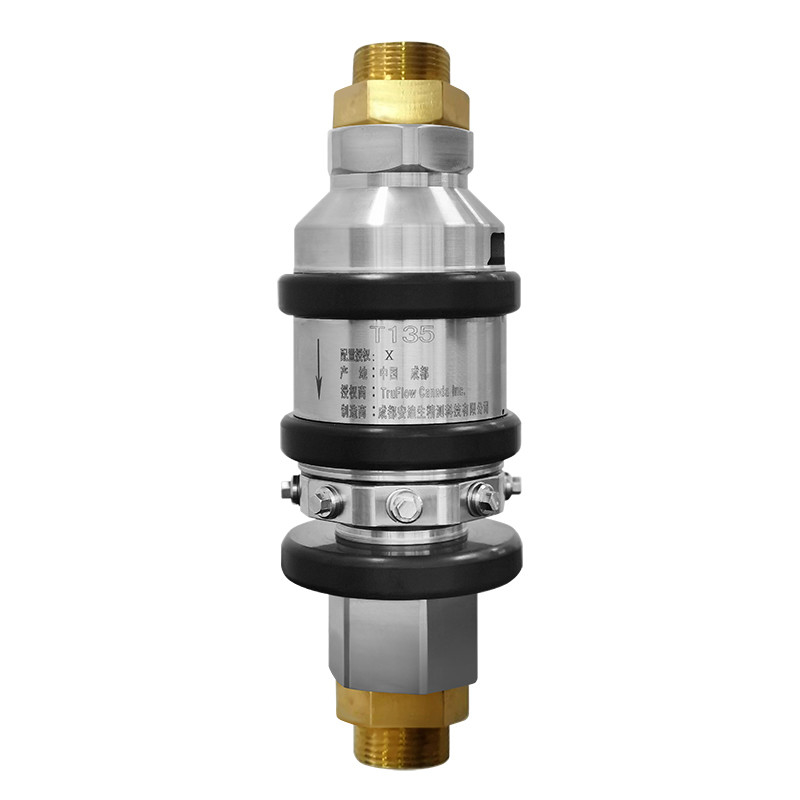

Breakaway Coupling for Hydrogen

● It can be still used after being reassembled once being broken away, making the maintenance cost low.

Specifications

Mode	T135-B	T136	T137	T136-N	T137-N
Working medium	H₂
Ambient Temp.	-40℃～+60℃
Max working pressure	25MPa	43.8MPa
Nominal diameter	DN20	DN8	DN12	DN8	DN12
Port size	NPS 1" -11.5 LH	Inlet end: 9/16 pipe CT threaded connection; Air return end: 3/8 pipe CT threaded connection
Main materials	316L Stainless steel
Breaking force	600N～900N	400N～600N

Application Scenario

Hydrogen Dispenser Application

Working medium: H2, N2

mission

Efficient use of energy to improve the human environment
