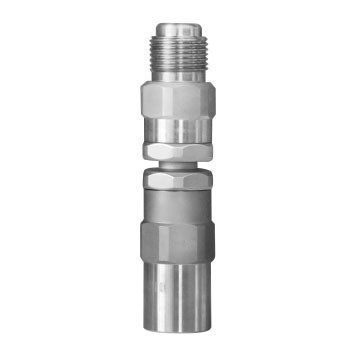

CNG Dispenser Breakaway Coupling

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Produkt-Beschreibung

In this way, fire, explosion and other safety accidents caused by unexpected fall-down of gas filling device or breaking of filling/discharging hose due to man-made misoperation or operation against regulations can also be avoided.

Product features
Specifications
Ask now

Product features

The breakaway coupling has a simple structure and an unblocked flow channel, making the flow larger by comparing with others with the same caliber.

Breakaway Coupling

● Its pulling strength is stable and it can be repeatedly used by replacing tensile part, and therefore its maintenance cost is low.
● It can break away quickly and automatically sealed, which is safe and reliable.

● It has a stable breaking load and can be reused by replacing the breaking parts after breaking, achieving a low maintenance cost.

Specifications

Model

Working pressure

Break-away force

Port size (customizable)

Main material

/sealing material

Explosive-proof mark

T102

≤1.6 MPa

400N～600N

DN12

CNG Dispenser Breakaway Coupling 0 UNF (Outlet)

(Inlet: Internal thread Outlet: External thread)

304 stainless steel/Copper

Ex cⅡB T4 Gb

T105

≤1.6 MPa

400N～600N

DN25

NPT 1(Inlet);

CNG Dispenser Breakaway Coupling 1 UNF (Outlet)

304 stainless steel/Copper

Ex cⅡB T4 Gb

Application Scenario

LNG Dispenser Applic

mission

Efficient use of energy to improve the human environment
