LNG-Station
>

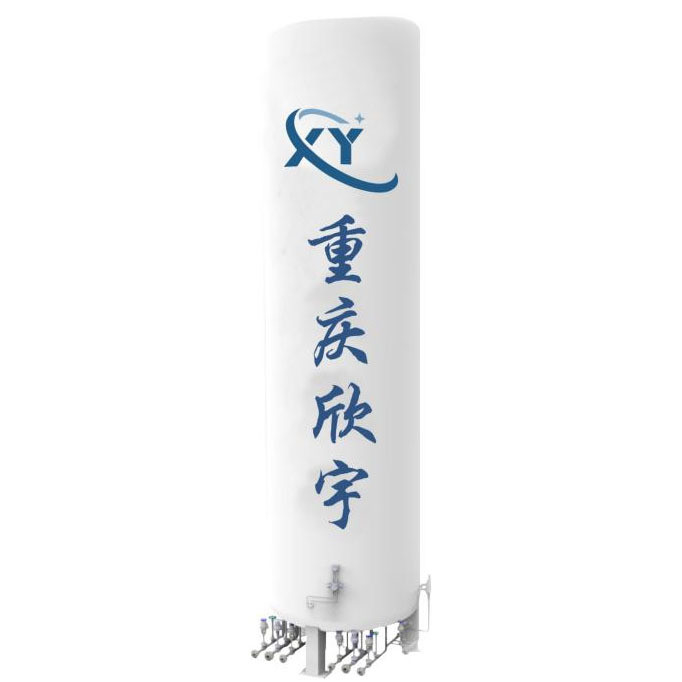

ASME Vertical/Horizontal LNG Cryogenic Storage Tank
Alle Kategorien

LNG-Station

Wasserstoffstation

CNG-Station

Technik

Andere Produkte
Treten Sie mit uns in Verbindung
Mrs. Emma
shixr@hqhp.cn
+8615928541573
Kontakt jetzt
ASME Vertical/Horizontal LNG Cryogenic Storage Tank
  • Name

ASME Vertical/Horizontal LNG Cryogenic Storage Tank

Ausführliche Information
Produkt-Beschreibung
Ausführliche Information
Produktbezeichnung:
LNG-Kryogenspeicher
Material:
Metall
Farbe:
Weiß
Bescheinigung:
ASME
Lebenszyklus:
Lange
Anpassbar:
- Ja, das ist es.
Produkt-Beschreibung

The storage tank is a double-layer structure, the inner container is suspended inside the outer shell by means of a supporting device, and the interlayer space formed between the outer shell and the inner container is evacuated and filled with perlite for insulation (or high vacuum multi-layer insulation).

  • Product features
  • Specifications
  • Ask now

Product features

Insulation method: high vacuum multi-layer insulation, vacuum powder insulation.

LNG cryogenic storage tank

● The storage tank is designed with separate pipeline systems for liquid filling, liquid venting, safe venting, liquid level observation, gas phase, etc., which are easy to operate and can realize functions such as liquid filling and venting, safe venting, liquid level pressure observation, etc.



● There are two types of storage tanks: vertical and horizontal. The vertical pipelines are integrated at the lower head, and the horizontal pipelines are integrated at one side of the head, which is convenient for unloading, liquid venting, liquid level observation, etc.



● There are intelligent solutions, which can monitor temperature, pressure, liquid level and vacuum degree in real time.
● Wide range of applications, storage tanks, pipeline diameter, piping orientation, etc. can be customized according to user needs.

Specifications

Vertical tank

Specifications

 Geometric volume m3

Working pressure (Mpa)

 Dimensions (mm)

Empty weight (kg)

Remark

CFL-9/0.8

10

0.8

φ 2016*7545

7900

3 supports

CFL-9/1.05

10

1.05

8400

CFL-9/1.2

10

1.2

8400

CFL-18/0.8

20

0.8

φ 2500*8185

10000

3 supports

CFL-18/1.05

20

1.05

11000

CFL-18/1.2

20

1.2

11000

CFL-27/0.8

30

0.8



13800



CFL-27/1.05

30

1.05

φ 2500*11575

15080

3 supports

CFL-27/1.2

30

1.2

15080

CFL-45/0.8

50

0.8

φ3000 *11620

20400

3 supports

CFL-45/1.05

50

1.05

23400

CFL-45/1.2

50

1.2

23400

CFL-54/0.8

60

0.8

φ3000 *13520

22500

3 supports

CFL-54/1.05

60

1.05

25500

CFL-54/1.2

60

12

25500

CFL-90/0.8

100

0.8

φ3520 *16500

37200

4 supports

CFL-135/0.8

150

0.8

φ3720 *21100

49710

4 supports

Horizontal tank

Specifications

Geometric volume m3

Working pressure (Mpa)

Dimensions (mm)

Empty weight (kg)

Remark

CFW-4.5/0.8

5

0.8

φ 2016*3960

5613



CFW-4.5/1.05

5

1.05

5913



CFW-4.5/1.2

5

1.2

5913



CFW-9/0.8

10

0.8

φ 2016*6676

7413



CFW-9/1.05

10

1.05

7915



CFW-9/1.2

10

1.2

7915



CFW-18/0.8

20

0.8

φ 2500*7368

10200



CFW-18/1.05

20

1.05

11300



CFW-18/1.2

20

1.2

11300



CFW-27/0.8

30

0.8

φ 2500*10016

12580



CFW-27/1.05

30

1.05

13880



CFW-27/1.2

30

1.2

13880



CFW-45/0.8

50

0.8

φ3000 *10750

18400



CFW-45/1.05

50

1.05

21000



CFW-45/1.2

50

1.2

21000



CFW-54/0.8

60

0.8

φ3000 *12650

20500



CFW-54/1.05

60

1.05

23500



CFW-54/1.2

60

1.2

23500



CFW-90/0.8

100

0.8

φ3520 *16500

35500



Application Scenario

The LNG storage tank is composed of inner container, outer shell, support, process piping system, thermal insulation material and other components. The storage tank is a double-layer structure, the inner container is suspended inside the outer shell by means of a supporting device, and the interlayer space formed between the outer shell and the inner container is evacuated and filled with pearl sand for insulation (or high vacuum multi-layer insulation).
