high quality reliable ASME Industrial cryogenic storage tanks

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Produktbezeichnung:

Industrieller kryogener Speicher

Farbe:

Weiß

OEM-Produkte:

- Ja, das ist es.

Anpassen:

Material:

Metall

Bescheinigung:

ASME

Produkt-Beschreibung

The storage tank is a double-layer structure, the inner container is suspended inside the outer shell by means of a supporting device, and the interlayer space formed between the outer shell and the inner container is evacuated and filled with perlite for insulation (or high vacuum multi-layer insulation).

Product features
Specifications
Ask now

Product features

Insulation method: high vacuum multi-layer insulation, vacuum powder insulation.

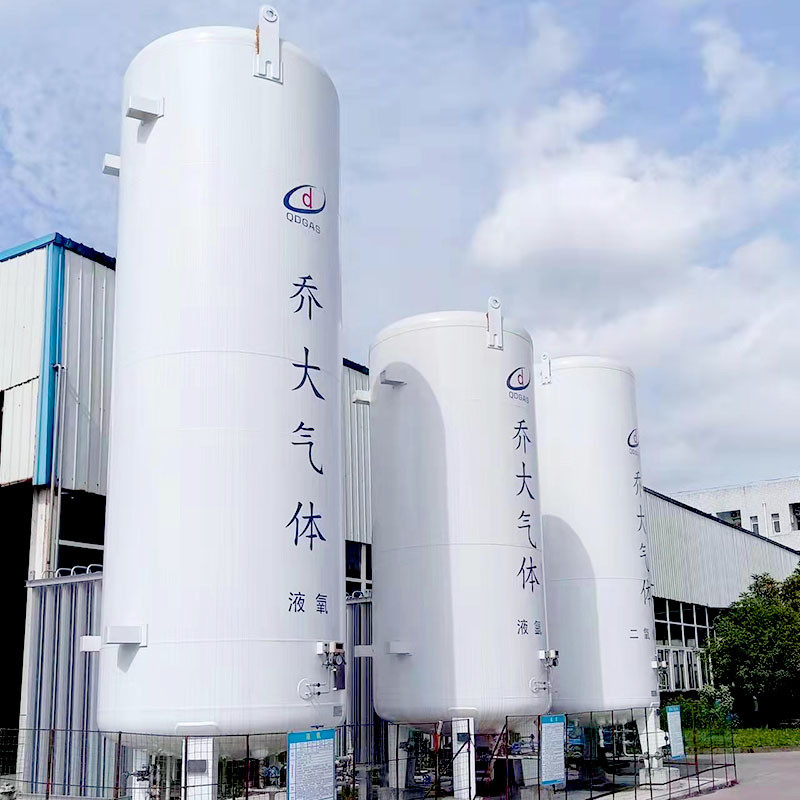

Industrial cryogenic storage tanks

● Main medium: liquid oxygen (LO₂), liquid nitrogen (LN2 ), liquid argon (LAr₂), liquefied ethylene (LC₂H₄), etc.

● The storage tank is designed with separate pipeline systems such as liquid filling, liquid venting, safe venting, liquid level observation, gas phase, etc., and is equipped with a self-pressurization system and a priority gas system, which can automatically replenish the pressure when the pressure is low. And when the pressure is high, it can automatically start the priority air system to relieve pressure and use air.

● The storage tank is mainly vertical, and the pipelines are integrated at the lower head, which is convenient for unloading, liquid venting, liquid level observation, etc.

● There are intelligent solutions that can monitor temperature, pressure, liquid level and vacuum in real time.
● Wide range of applications, storage tanks, pipeline diameter, piping orientation, etc. can be customized according to user needs.

Specifications

Models and Specifications	Work pressure (MPa)	Dimensions (diameter X height)	Remark
CFL-4.5/0.8	0.8	φ 2016*4760
CFL-4.5/1.05	1.05	φ 2016*4760
CFL-4.5/1.2	1.2	φ 2016*4760
CFL(W)-10/0.8	0.8	φ2300X6550 _
CFL(W)-15/0.8	0.8	φ2500X6950 _
CFL(W) -20/0.8	0.8	φ2500X8570 _
CFL(W) -30/0.8	0.8	φ2500X11650
CFL(W)-50/0.8	0.8	φ3000X12700
CFL(W) -60/0.8	0.8	φ3000X14400
CFL(W) -100/0.8	0.8	φ3500X17500
CFL W) -150/0.8	0.8	φ3720X21100
CFL(W)-10/1.6	1. 6	φ2300X6550
CFL (W)-15/1.6	1. 6	φ2500X6950
CFL (W)-20/1.6	1. 6	φ2500X8570
CFL (W)-30/1.6	1.6	φ2500X1 1650 _
CFL(W)-50/1.6	1.6	φ3000X12700 _
CFL(W)-60/1.6	1.6	φ3000X14400 _
CFL (W)-100/1.6	1.6	φ3500X17500 _
CFL W) -150/1.6	1.6	φ3720X21100 _

LCO vacuum powder cryogenic liquid storage tank (effective volume)

Models and Specifications	Working pressure (MPa)	Dimensions (diameter X height)	Remark
CFL(W)-10/2.16	2.16	φ2300X6000
CFL (W)-15/2.16	2.16	φ2300X7750
CFL (W)-20/2.16	2.16	φ2500X8570
CFL (W)-30/2.16	2.16	φ2500X11650
CFL (W)-50/2.16	2.16	φ3000X12770
CFL (W)-100/2.16	2.16	φ3500X17500
CFL (W)-150/2.16	2.16	φ3720X21100

Application Scenario

Industrial cryogenic storage tanks are widely used in industrial production and daily life to store liquefied gas. At present, it is mainly used in various provincial and municipal hospitals, steel mills, gas production plants, manufacturing industries, electric welding and other manufacturing industries.

mission

Efficient use of energy to improve the human environment
